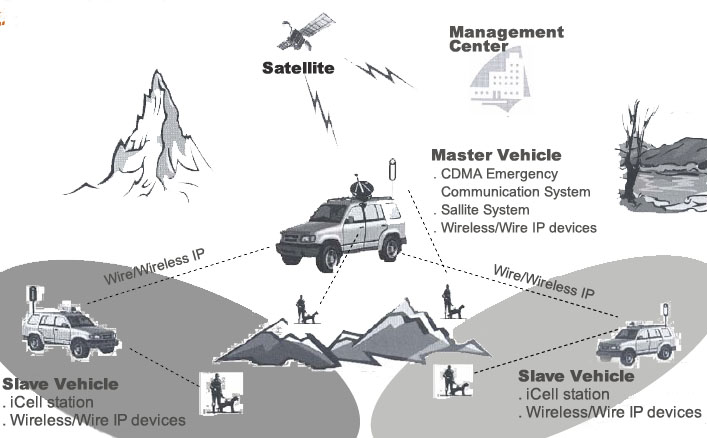

FirstResponse:Vehicle Overview FirstResponse:Vehicle is a vehicle on-board, full-function CDMA system designed for emergency rescue communications or remote areas. It provides a quick and flexible deployment solution for local coverage when the normal communications are destroyed or can not be accessed. An Emergency Communication Vehicle's coverage radius can up to 60km. With mutiple Emergency Communication Vehicles, the system can easily increase its radio coverage. The system architecture with multiple Emergency Communication Vehicles is shown in following:
Feathers The system is composed of multiple communication vehicles (master node + slave nodes) to increase the radio coverage Master node installs the FirstResponse:Vehicle System slave nodes install iCell stations One master node can add mutiple slave nodes Technical Specifications Air Interface: CDMA2000 1X/EV-DO Rev. A Working Frenquency: 450MHz /800MHz /1900MHz Frenquency Band: 1.25MHz User Capacity: 3,000 voice call, 105 dispatching Packet Data Rate: CDMA2000 1X: 153.6 Kbps/sector, CDMA2000 EV-DO Rev.A: 3.1Mbps/1.8Mbps/sector RF Sensitivity: -127dBm - -125dBm RF Output Power: 20W Power Consumption: 750W |
